FFS Tubular Machine

FFS Bagging Machine

The FFS bagging machine can reach over 2000 bags/hour.
For free-flowing products.
It has limited size, compact structure and can be installed in a small area.

Up to 33 BPM speed
Highlighted High production
FFS Bagging Machine 2

The MF TUBE FFS Form-Fill-Seal machine was designed to handle high-speed packaging of free-flowing, powdery, and granular products.

Engineered to ensure maximum productivity and reliability, it achieves speeds of up to 2,000 bags/hour depending on the characteristics of the product being bagged.

Its structure is made entirely of AISI 304/L Stainless Steel, making it ideal for both food products and the bagging of chemical or aggressive substances.

Thanks to its extremely compact footprint, the machine can also be installed in tight production spaces.



How It Works

The packaging cycle of the MF TUBE operates through three high-precision stations:

  1. Station 1 - Forming and Cutting: Sealing the bottom of the bag and cutting the tubular film to the predefined length.
  2. Station 2 - Filling: Accurate dosing and filling of the bag through the discharge spout.
  3. Station 3 - Top Sealing: Final closing and sealing of the bag mouth.







Parameter Value / Feature
Maximum speed Up to 33 BPM (2,000 bags/hour)
Bag types Pillow bags, Gusseted bags
Minimum bag dimensions 320 x 550 mm
Maximum bag dimensions 480 x 900 mm
Construction material AISI 304/L Stainless Steel
Control and Automation PLC with Touch-Screen Operator Panel and remote management

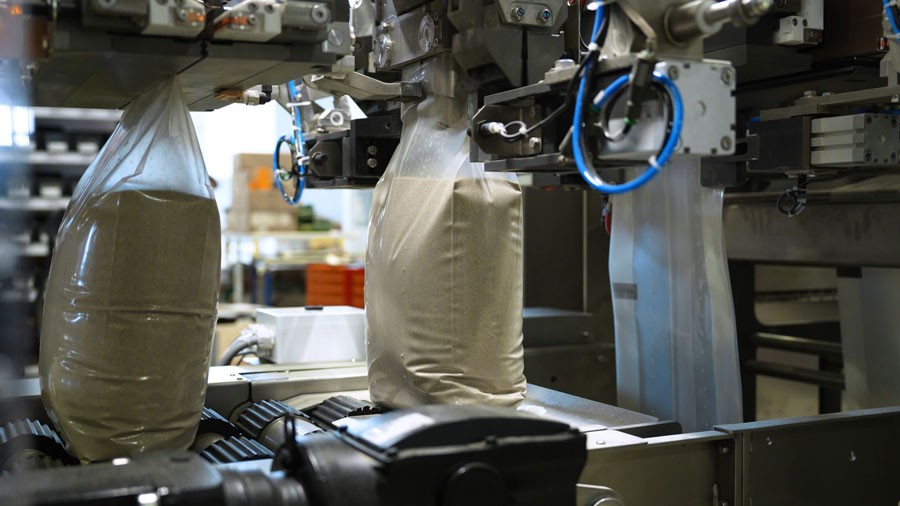

Form-Fill-Seal Machine

Key Advantages of the MF TUBE

  • Robust, Compact, and Modular Design: Solid structure suitable for the most demanding industrial environments and easily adaptable to any production layout.
  • Electric Reel Lifter: Allows film reel loading in total safety without using external lifting equipment.
  • Reel Micro-Perforation: Integrated system for air evacuation from inside the bag, optimizing package compactness and stability.
  • 45° Corner Sealing: Applied to the bottom and top corners to improve aesthetic shape and structural stability of the bag.
  • Maximum Hygiene and Easy Cleaning: Entirely built from AISI 304/L stainless steel with watertight wiring to prevent residue accumulation and simplify washdown operations.
  • Advanced Electronics and PLC Management: Automatic operation cycle control, touch-screen operator panel, and support for remote technical assistance.

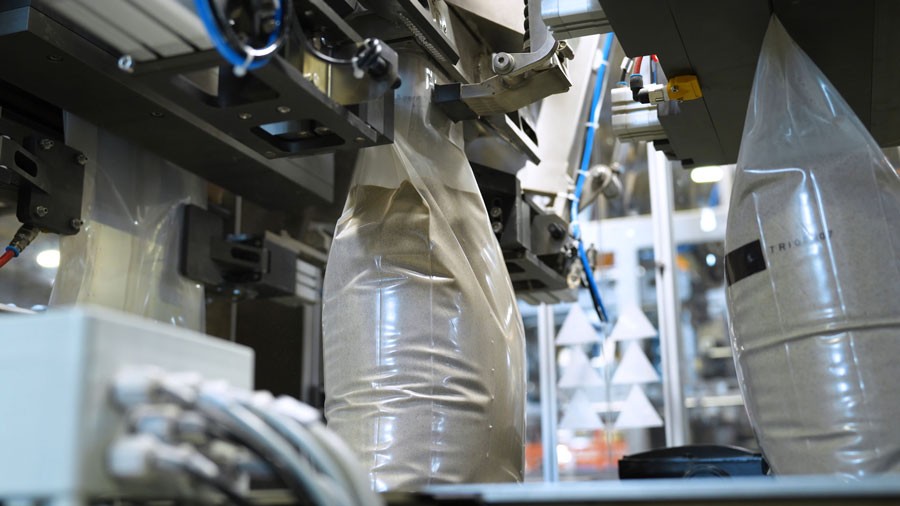

Tubular FFS

Applications

The MF TUBE FFS machine is a versatile solution suitable for packaging a wide range of bulk products:

  • Food Industry: Flour, grains, salt, sugar, animal feed, pet food, and food additives.
  • Chemical and Corrosive Industry: Fertilizers, industrial salts, plastic pellets, and aggressive chemical compounds.
  • Building and Mining Industry: Sand, specialized cements, mortars, and granular or powdered building materials.



Complete System Solutions

MF TECNO boasts over 20 years of experience in designing and installing high-tech complete systems.

The MF TUBE FFS machine integrates seamlessly upstream and downstream with palletizing, case packing, and stretch wrapping systems.







Below is a detailed overview of the Tubular Form-Fill-Seal machine.

Find out more ❯
  Request information

Download pdf
FFS Bagging Machine 3
FFS Bagging Machine 4
FFS Bagging Machine 5
FFS Bagging Machine 6
FFS Bagging Machine 7

FEATURES AND BENEFITS

There are many reasons to choose our products

  • 01 Robust, compact and modular design
  • 02 Electric reel lifter to allow the reel to be loaded without the use of external lifting means
  • 03 Micro-perforated reel to allow air escape from the bag
  • 04 45 ° sealing of the corners (K-sealing) for a perfect bag formation
  • 05 Ease of cleaning and maximum hygiene standards: structure designed for easy cleaning, entirely mado of AISI 304 / L stainless steel, watertight wiring
  • 06 High production speed: the film dragging system and the PLC electric control panel, allow to reach very high productivity with any material and bag format
  • 07 Electrical control panel with latest generation PLC and touchscreen panel
  • 08 Pannello operatore touch-screen
  • 09 Display equipped with ability to self-diagnose abnormalities
  • 10 Compliance of the machinery with the criteria required by Industry 4.0

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Pneumatic device for the creation of lateral gussets

Check-weigher with ejector

Annular metal detector

Remote Assistance

K sealing device

Product conveyor and loading system
